Offerings

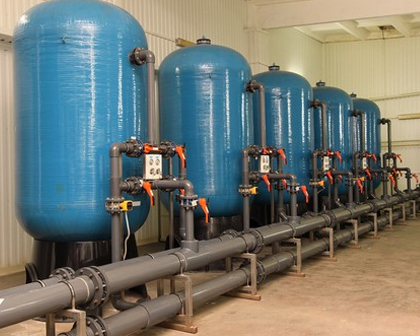

Media Filtration

• Activated carbon systems (granular)
• Anthracite flters
• Ion Exchange Resins
• Gravity filters
• Rapid sand filtration
• Multimedia flters
• Powdered activated carbon treatment svstems
• Pressure filters

Disinfection

• Ultraviolet disinfection
• Ultraviolet (UV) sterilizers
• Ozone disinfection
• Hypochlorite generators
• Chlorine dioxide disinfection
• Calcium hypochlorite feeders
• Residual chlorine analysers and controller

Process water refers to water used in manufacturing processes such as rinsing, plating, spraying, coating, cooling, washing, boiler water make-up, cooling tower make-up, etc. Oftentimes, minerals dissolved in the city or well water may cause spotting, fouling, streaking, interference with adherence, scaling, product contamination or other undesirable effects which affect quality of the product or the cost to manufacture it. Water quality may be associated with high energy costs; for example, demineralizing water going to a boiler may reduce fuel consumption markedly by allowing operation at much higher cycles of concentration, thus drastically reducing the blow down which dumps very hot water down the drain.

Process water treatment technologies

• Activated Carbon Filters
• Aeration
• Air stripping
• De alkalization
• De carbonization
• De ionization
• De mineralization

• Distillation
• Greensand Filtration
• Ion Exchange
• Micro filtration
• Multi media Filtration
• Nano Filtration

• Ozonation
• Reverse Osmosis
• Softening
• UV Disinfection
• Ultra Filtration
• Oil/Water Seperation

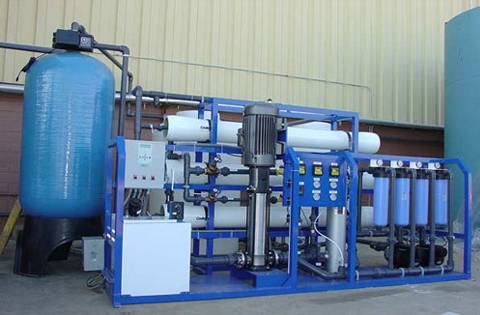

1. Reverse osmosis plants:

Reverse osmosis, or (RO), is a water purification technology that utilizes a semi permeable membrane to remove the dissolved ions and minerals from water to produce high purity water. An Industrial reverse osmosis system is designed to be a part of an overall water purification system used in commercial and industrial applications.

In a reverse osmosis system, one side of the water purification tank has unprocessed water and pure water on the other side, separated by a semi-permeable membrane.

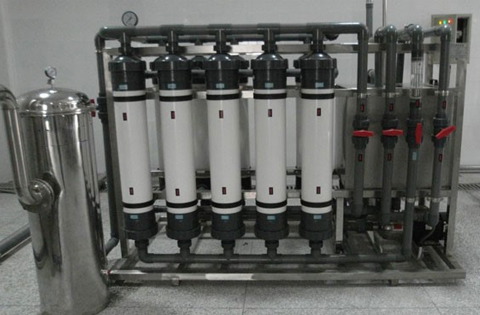

2. Ultra filtration:

Ultrafiltration is used for the separation of suspended solids, colloids, bacteria and virus. This technique uses membranes with pore size between 1-100nm.

There are 4 membranes geometries:

1. Spiral wound module:

This design tries to maximize surface area in a minimum amount of space. It is the less expensive but more sensitive to pollution due to its manufacturing process. It consists of consecutive layers of large membrane and support material in an envelope type design rolled up around a perforated steel tube.

2. Plate and frame module:

It is normally used for bad quality water. They are set up with a stack of membranes and support plates.

3. Tubular membrane:

Generally used for viscous or bad quality fluids. These modules do not need a preliminary pre-treatment of the water. As the feed solution flows through the membrane core, the permeate passes through the membrane and is collected in the tubular housing.

The main drawback is that the system is not very compact and has a high cost per m2 installed and it is not very compact. Diameter's tube is generally between 4 and 25mm.

4. Hollow fiber membrane:

The modules contain several small (0.6 to 2 mm diameter) tubes or fibers. As the feed solution flows through the open cores of the fibers, the permeate is collected in the cartridge area surrounding the fibers. It can carry out the filtration in two ways, either "inside-out" or "outside-in"

NEXT’s engineers design and build tailor-made ultrafiltration plants. Our UF plants are build with hollow fiber outside-in membranes, up to 100 m3/h, to purify surface or groundwater from suspended solids, colloids and all kind of micro-organisms such as bacteria, virus, protozoa, germs and larvae.

Ultrafiltration is also commonly use as a Reverse Osmosis plant pretreatment.

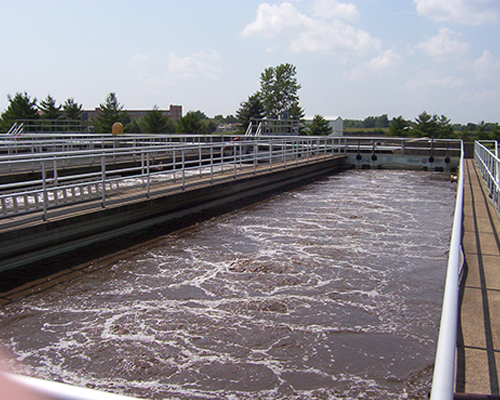

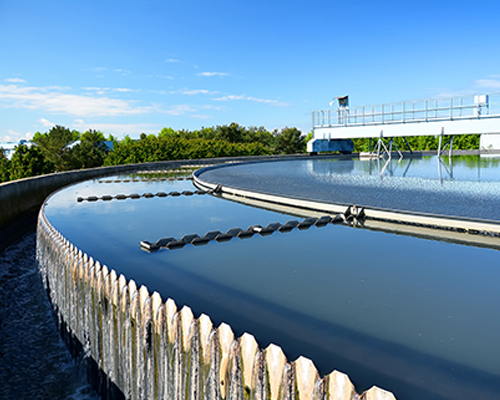

NEXT designs and sets up wastewater treatment plant and also upgrade existing treatment facilities. The company offers consultancy services to its valued customers. As a part of consultancy service, we carry out preliminary studies and surverys , get to know the clients requirements, problems, constraints etc and based on this data we draw our conclusions and provide superior services. We offer many modern and customised technologies like

• Moving bed bio reactor method (MBBR)
• Sequencing batch reactor (SBR)
• Activated sludge process (ASP)
• Membrane bio reactor (MBR)
• Fluidized bed reactor (FBR)
• Upflow anaerobic sludge blanket reactor (UASB)

Increase Capacity Without Expanding Footprint With the MBBR System:

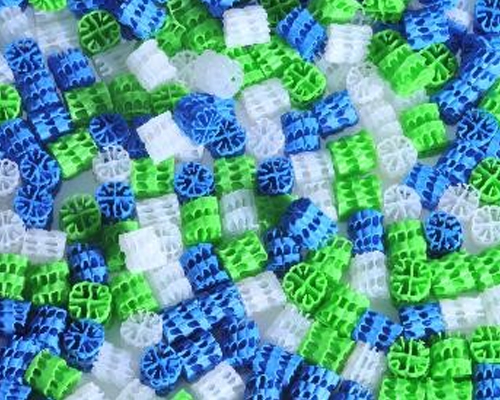

The Moving Bed Bio film Reactor or MBBR process is based on the aerobic bio film principle and utilizes the advantages of activated sludge and other bio film systems without being restrained by their disadvantages. The basis of the process is the bio film carrier elements that are made from polyethylene. The elements provide large protected surface area for the bio film and optimal conditions for the bacteria culture to grow and thrive. The bio film that is created around each carrier element protects the bacterial cultures from operating excursions to yield a very robust system for those industrial facilities loaded with process fluctuations. The bio film also provides a more stable "home" for the bacteria to grow, so there is less space required compared to other biological systems and far less controls. Essentially nutrient levels and DO levels are the only control points for the system. MBBRs can be designed for new facilities to remove BOD/COD from wastewater streams or for nitrogen removal. Existing activated sludge plants can be upgraded to achieve nitrogen and phosphorus removal or higher BOD/COD capacity

MBBR System Features & Benefits

ROBUST

• Stable Under Load Variations
• lnsensitive to Temporary Limitation
• Consistent Treatm ent Results

EFFICIENT

• Low Solids Generation
• Low or No Polymer Required for Liquid / SoIids Separation

FLEXIBLE

• Customizable Reactor Shapes
• Ulilization of Existing Tanks
• Upgrade Existing Plants

TROUBLE-FREE

• Easy to Operate
• No Media Clogging
• No Sludge Return

COMPACT

• Small Footprint
• Low Capital Cost

NEXT offer an extensive range of advanced; scientifically formulated water treatment products, speciality chemicals and water additives manufactured to the highest international quality and environmental standards for guaranteed performance.

NEXT's high performance chemical treatment products and speciality additives are used successfully in commercial, municipal and industrial process environments where they help to improve productivity, optimise performance and reduce equipment life-cycle costs.

NEXT's full range of scientifically formulated water additives and chemical treatment products includes high performance water treatment chemicals for steam boilers, cooling water systems, cooling towers and closed circuits; wastewater and effluent treatment chemicals, high performance industrial chemicals, reverse osmosis membrane products, eco-friendly biological formulations, advanced polymers and much more.

For the chemical treatment of water a great variety of chemicals can be applied. Below, the different types of water treatment chemicals are summed up.

• Algaecides
• Antifoams
• Biocides
• Boiler water chemicals
• Coagulants
• Corrosion inhibitors
• Disinfectants

• Flocculants
• Neutralizing agents
• Oxidants
• Oxygen scavengers
• pH conditioners
• Resin cleaners
• Scale inhibitors

A water audit can provide organisations with strategies on how to reduce costs and improve water use efficiency. NEXT’s experienced water auditors can assist your organisation to improve water use through comprehensive water audits.

NEXT’s water auditors can assist your organisation to:

• Reduce water usage and operating costs
• Determine a range of practical and cost effective methods to reduce consumption
• Set, review and meet water efficiency targets
• Provide practical and cost-effective measures for reducing water consumption
• Provide advice on water efficient technologies and process improvements

NEXT’s experienced water auditors:

• Review historical water use
• Conduct an on-site survey and assessment of water end uses and inspect for leaks
• Develop sub-metering plans and water reticulation diagrams
• Review infrastructure, systems, equipment and practices onsite to accurately estimate water usage
• Identify up-front costs and payback periods for water saving opportunities
• Identify areas for improved water efficiency and cost savings
• Identify any additional savings that is associated with a reduction in water use eg energy savings achieved from reducing hot water use
• Identify and assist with possible grant applications for Resource Efficiency and/or Sustainability Programs
• Implement water efficiency action plans

To discuss your water auditing and efficiency requirements please contact us at +974 xxxx xxxx

Water quality and compliance testing.

NEXT provides water testing services for water quality. Water quality analysis is provided for the world's petroleum, mineral, food, industrial, manufacturing and other industries.

Water testing:

• Marine Potable Water Quality Testing
• Cooling Water Conditioning and Control
• Microbiology Services
• Water Content Testing for the Petroleum Industry
• Formation and Produced Water Analysis
• Sea Water Analysis
• Water Activity Testing (Aw)

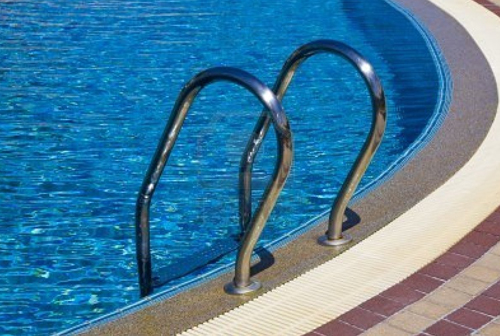

NEXT offer the Leisure, Public & Private sectors a high quality, first class service, specialising in all aspects of swimming pool design, construction,maintenance, project management & finishing.

Having a wide experience in the civil & mechanical engineering disciplines, and a highly skilled, fully qualified engineering and construction team, our work is carried out to the highest standards and complies with the latest legislation, codes of practice and health & safety regulations.

From Pool design through project management services to complete build and refurbishment, we work closely with our clients ensuring that they are kept up to date at every stage of the project until completion.

We pride ourselves on the high standards of workmanship that we adhere to and we operate a process of continual evaluation to ensure that as a company we offer the highest standards available.

We are confident our customers can have total peace of mind that projects we undertake will be of the highest quality, delivered on budget and on time.

We have the professionalism, the expertise and technical knowledge to provide the complete swimming pool service.

Furthermore, cleaning and disinfection of water systems on a scheduled routine basis is good engineering practice. It is a statutory requirement to disinfect water systems in premises where water is stored and used in a way that could create the foreseeable risk of legionellosis (Legionnaires’ Disease).

Contact us to avail or know more about these services. Our engineers will work with you, and visit your site or office for meetings, to specify the optimum solution and offer advice on our services, providing you with a cost effective and efficient solution.

Email : engg@nextwaters.com | Call: +974 66242877
