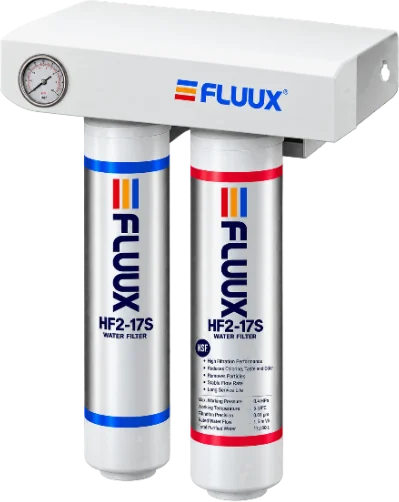

HF3 system
Two HF2-17S cartridges side by side on one bracket, with a pressure gauge.
Commercial filtration range
FLUUX commercial filters by Microfilter Korea
Next Water Solutions is the authorised dealer for Microfilter Korea water purifiers in Qatar. FLUUX is Microfilter's commercial filtration brand, for restaurants, cafés, hotels, convenience stores and QSR chains.
Why FLUUX commercial filtration
FLUUX is Microfilter Co., Ltd.'s dedicated commercial-use filtration brand, built on the company's long-running filter-cartridge manufacturing and quality-control experience.
The range is engineered for food-service and hospitality environments (restaurants, cafés, hotels, convenience stores and QSR chains), where consistent water quality directly affects taste, equipment life and running costs.
Untreated feed water can carry dissolved minerals, disinfection by-products, fine sediment and microorganisms. Left untreated, these cause off-tastes, scale build-up and corrosion inside coffee machines, ice machines, combi ovens and beverage equipment, driving up maintenance and shortening equipment life. Filtering the incoming water protects the equipment investment while keeping the finished drink or ice consistent.
-
Protects equipment
Reduces scale, corrosion and sediment damage.
-
Consistent quality
Stable taste and clarity across every batch.
-
Easy maintenance
Quick-change cartridges and tool-free heads.
Flagship high-flow line

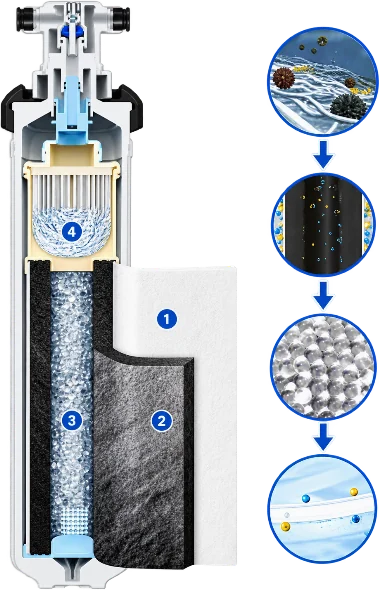

FX system
The FX range combines a carbon block with ultra-filtration (UF) membrane technology rated down to 0.1 micron: fine enough to remove bacteria and cysts as well as chlorine taste and odour.
It is offered as a hybrid all-in-one cartridge (sediment, carbon block and UF, with an optional polyphosphate stage) that suits tight kitchen spaces.
| Model | Capacity | Flow rate | Dimensions |
|---|---|---|---|

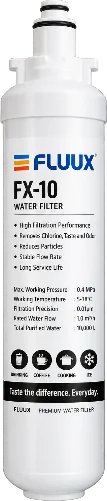

| FX-10 | ~30,000 L | 5.7 L/min | — |

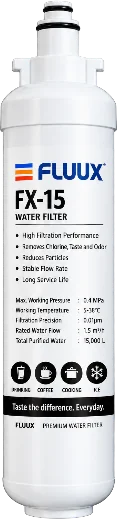

| FX-15 / FX-15S | ~60,567 L | 9.4 L/min | 407 × 94 mm |

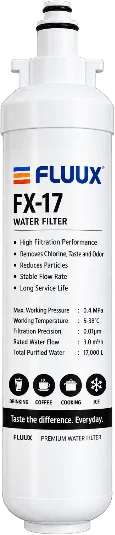

| FX-17 | ~71,992 L | 9.4 L/min | 471 × 94 mm (with head) |
Operating conditions: 4°C–38°C, 0.7–8.3 bar (10–120 psi). Figures are indicative; ask us for the current datasheet.
For commercial ice machines

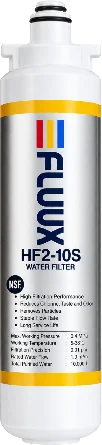

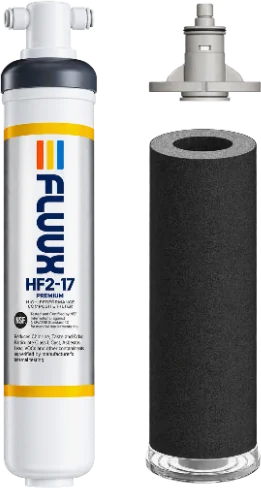

HF2 system
The HF2 range is a 0.5 micron activated-carbon block cartridge purpose-built for commercial ice machines.
It combines chlorine taste-and-odour reduction with a scale-inhibiting layer that protects machine internals, and reduces sediment, rust and corrosion carried in the feed water.
- Filtration
- 0.5 micron activated-carbon block
- Flow rate
- Approx. 7.6 L/min
- Operating range
- 4°C–38°C, 30–125 psi
- Certification
- NSF 42, 53 and 401
- Filter heads
- Common quick-change (EP-style) heads
- Replacement
- Every 6–12 months, or on reaching rated capacity, whichever comes first
Against limescale

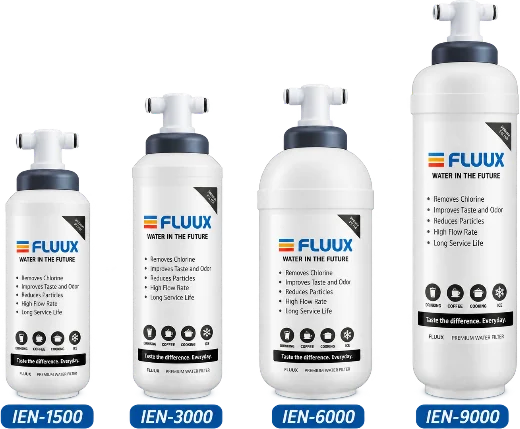

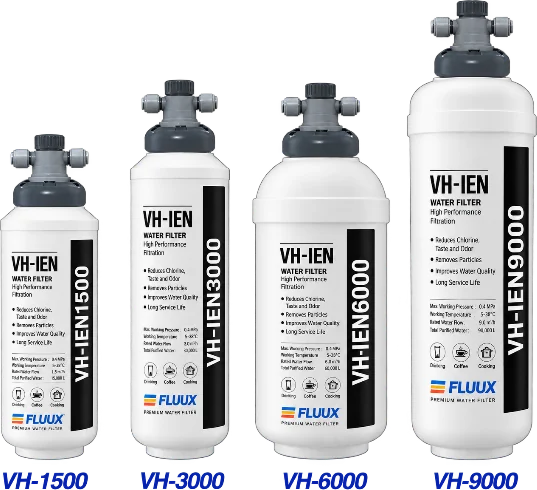

IEN and VH-IEN systems
Both ranges use ion-exchange media to reduce water hardness (limescale) ahead of coffee and espresso machines, combi and steam ovens, hot-drink vending and warewashing equipment, protecting heating elements and boilers from scale while keeping mineral levels balanced for taste.
The IEN range uses a fixed-bypass filter head; the VH-IEN range pairs with an 8-level variable-bypass head, so the blend ratio can be tuned to the site's actual water hardness.
| Model | Capacity at 10°dH | Approx. coffee cups* |
|---|---|---|
| IEN 1500 | ~1,533 L | 10,000 |
| IEN 3000 / VH-IEN 3000 | ~3,006 L / ~4,569 L | 20,000 / 30,460 |
| IEN 6000 / VH-IEN 6000 | ~6,002 L / ~9,874 L | 40,000 / 65,827 |
| IEN 9000 / VH-IEN 9000 | ~9,000 L | 60,000 |
*Based on a 150 ml serving, for reference only: actual life depends on local water hardness. Flow rate approx. 1.0–1.7 L/min; operating range 4°C–38°C, 30–100 psi. Both ranges are NSF-tested; figures are indicative.
Quick change

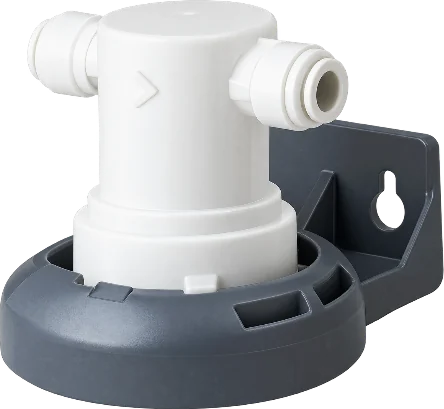

FLUUX filter heads
The quick-change filter head is the common connection point across the FLUUX range: it stays plumbed in, while the cartridge itself is swapped at service time.
| Head | Pairs with | Key feature |
|---|---|---|
| FX Head | VH-IEN range | 8-level variable bypass, 3/8" push-fit, auto shut-off |
| HF Head | IEN / MH range | Fixed (~30%) bypass, 3/8" push-fit, auto shut-off |
| HF-EP Head | FX / HF2 range | Everpure QL3B-compatible, 3/8" push-fit, auto shut-off |
All heads allow a filter change in roughly 30 seconds with a quarter-turn, without shutting off the water supply.
Completing the range
HF3, SCALE and MULTI systems
These three lines complete the FLUUX commercial range. Ask us for their current datasheets, with capacities and flow rates.
Request the datasheets

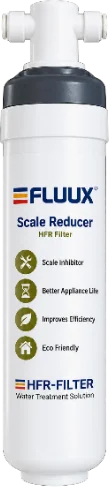

SCALE system
The Scale Reducer (HFR filter) inhibits scale, for longer appliance life and better efficiency.
MULTI system
Three stages on one bracket: a 503-T sediment filter for sand, rust, dirt and other suspended particles, an H2-17 carbon filter for chlorine, odour and organic compounds, and an H2-17S fine carbon filter for better taste and purity.
